EMD Parts
AGL Manufacturing carries a full range of EMD parts for 567, 645, 710 engine models. We have a large inventory of EMD parts in our USA and Canada warehouses to meet our customers’ immediate production need.
Our featured products includes but not limited to, Clutch Assemblies, Cam Plates, Shroud Rings, Scroll Turbine, Inlets, Gears, Carrier Shafts, Compressor Seals, Turbine Inlet Supports, Idler Gear, Gear Set, Carrier Bearing, Turbine Inlet Duct.
| Part Number | Description | Other |
| 8028766 | EMD | GASKET, #7500 1/64"" O.S. TRIP HOUSING REPLACEMENT, OEM GRADE |
| 8029034 | EMD | GASKET, #6101 .006"" LUBE OIL SYSTEM REPLACEMENT, OEM GRADE |
| 8029498 | EMD | GASKET, #7500 1/64"" LUBE OIL SYSTEM REPLACEMENT, OEM GRADE |
| 8049496 | EMD | GASKET #7500 1/64"" O.S. TRIP HOUSING |
| 8069445 | EMD | GASKET #7500 1/32"" LUBE OIL SYSTEM |
| 8071176 | EMD | BUSHING CAMSHAFT BEARING |
| 8083325 | EMD | WASHER COPPER AIR COMPRESSOR |
| 8083598 | EMD | GASKET #8300 1/8""AIR COMPRESSOR REPLACEMENT |
| 8084468 | EMD | STUB SHAFT |
| 8097592 | EMD | GASKET, LATHE CUT, COOLING SYSTEM PIPING REPLACEMENT |
| 8116738 | EMD | WIRE LOCK CLUTCH WIRE, 10M |
| 8135330 | EMD | THRUST WASHER |
| 8136114 | EMD | BEARING CON ROD LOWER |
| 8143446 | EMD | O-RING, BOTTOM GROOVE |
| 8155560 | EMD | DOWEL PIN |
| 8167060 | EMD | GASKET #7500 1/64"" LUBE OIL SYSTEM |
| 8187010 | EMD | SEAL, CRANKCASE TO OIL PAN 16 CYLINDER ENGINE REPLACEMENT, OEM GRADE |
| 8198078 | EMD | O-RING, OIL PAN ASSEMBLY REPLACEMENT, OEM GRADE |
| 8237900 | EMD | BEARING HALF CAMSHAFT |
| 8253825 | EMD | BEARING HALF CAMSHAFT |
| 8255258 | EMD | SEAL, LATHE CUT AIR COMPRESSOR |
| 8261067 | EMD | NUT .. IMPELLERRETAINER - 1-3/8-12 HEX. |
| 8261074 | EMD | NUT HEX 3/8-24 |
| 8261086 | EMD | BEARING |
| 8261090 | EMD | WASHER |
| 8261098 | EMD | CARRIER SHAFT SPACER 645 |
| 8261210 | EMD | RING GEAR, PLANETARY |
| 8261240 | EMD | SEAL IMPELLER MODEL 567 |
| 8261267 | EMD | BOLT HEX HEAD |
| 8261280 | EMD | IMPELLER SEAL GASKET |
| 8261284 | EMD | IMPELLER SPACER 645 |
| 8261285 | EMD | PLATE |
| 8261303 | EMD | LOCK PLATES. |
| 8262754 | EMD | GASKET, #6101 .006"" LUBE OIL SCAVENGING PUMP REPLACEMENT, OEM GRADE |
| 8268731 | EMD | GASKET, #7500 1/32""AIR COMPRESSOR REPLACEMENT |
| 8280352 | EMD | O-RING, LUBE OIL PIPING REPLACEMENT, OEM GRADE |
| 8283045 | EMD | SLEEVE, BUSHING IDLER GEAR |
| 8283431 | EMD | TAPER DOWEL. |
| 8283432 | EMD | TAPER DOWEL. |
| 8283433 | EMD | PIN DRIVE .015 O/S |
| 8288418 | EMD | DOWEL LOCATING |
| 8288955 | EMD | O-RING, LUBE OIL SYSTEM REPLACEMENT, OEM GRADE |
| 8289031 | EMD | EXHAUST DUCT RETAINING RING |
| 8289113 | EMD | BOLT SEAL RING CARRIER 3/8 X 7/8, MDL 567, 645 |
| 8289127 | EMD | NUT, HIGH TEMPERATURE, 3/8-24 HEX, SILVER PLATED |
| 8291349 | EMD | GASKET |
| 8294874 | EMD | SEAL |
| 8295574 | EMD | EXHAUST DIFFUSER |
| 8305815 | EMD | O-RING |
| 8306119 | EMD | COMPRESSOR LAB SEAL 567 |
| 8306238 | EMD | GASKET KIT, AFTERCOOLER CHANGEOUT |
| 8306501 | EMD | SEAL, LATHE CUTE, FUEL OIL SYSTEM REPLACEMENT |
| 8306950 | EMD | SHAFT, PLANETARY GEAR |
| 8306968 | EMD | TURBINE WHEEL ASSEMBLY |
| 8307494 | EMD | GEAR SET PLANETARY(SET OF 3) |
| 8309726 | EMD | IDLER GEAR SHAFT567 |
| 8310542 | EMD | BEARING ASSY |
| 8313126 | EMD | TURBINE BEARING SUPPORT |
| 8313151 | EMD | DOWEL PIN |
| 8313152 | EMD | DOWEL PIN |
| 8313153 | EMD | DOWEL PIN |
| 8313154 | EMD | DOWEL PIN |
| 8315689 | EMD | CUP SPRING |
| 8322023 | EMD | GASKET |
| 8326359 | EMD | DOWEL PIN |
| 8326360 | EMD | DOWEL PIN |
| 8326361 | EMD | DOWEL PIN |
| 8329247 | EMD | SEAL |
| 8329276 | EMD | DOWEL |
| 8329488 | EMD | WASHER THRUST HEAT DAM 567-645 |
| 8329489 | EMD | SLEEVE, COMPRESSOR JOURNAL |
| 8329531 | EMD | MACHINE SHAFT SUN GEAR STD |
| 8337614 | EMD | SHAFT CARRIER STD |
| 8337615 | EMD | CARRIER SHAFT ASSEMBLY EMD645 |
| 8339664 | EMD | SUPPORT TURBINE INLET DUCT |
| 8341192 | EMD | BEARING INSERT (STRAIGHT GROOVE) |
| 8343161 | EMD | O-RING, SOAKBACK FILTER ASSEMBLY |
| 8347939 | EMD | WASHER ANTI THRUST EMD645 |
| 8350036 | EMD | BLADE, 5 SERRATION |
| 8350037 | EMD | BLADE, 5 SERRATION |
| 8350038 | EMD | BLADE, 5 SERRATION |
| 8350039 | EMD | BLADE, 5 SERRATION |
| 8353348 | EMD | TAPER DOWEL. |
| 8354866 | EMD | COMPOUND |
| 8356239 | EMD | GASKET #7500 1/16"" AIR BOX DRAIN |
| 8358383 | EMD | SPRING CLUTCH |
| 8358500 | EMD | TURBOCHARGER, EMD 16-645E3 |

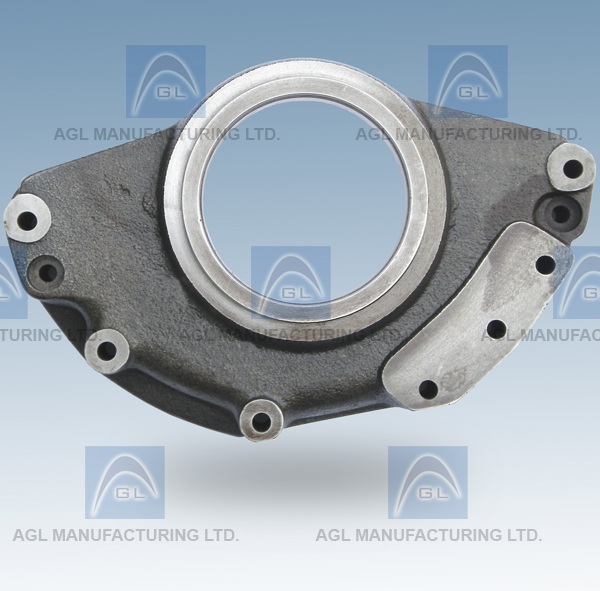

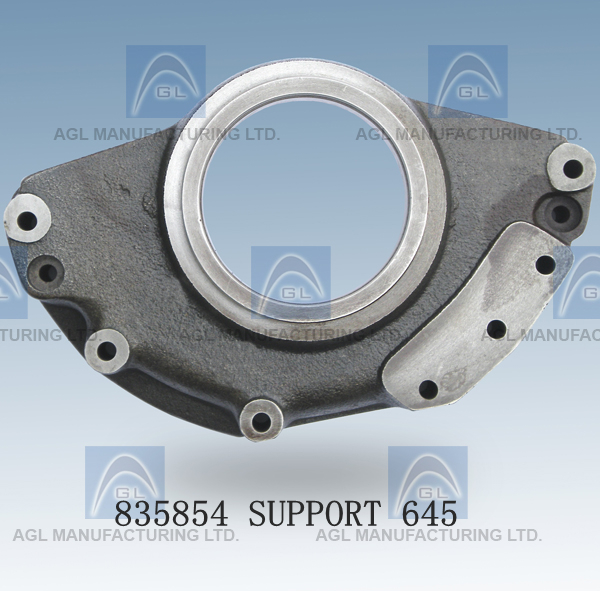

| 8358541 | EMD | SUPPORT 645 |
| 8358542 | EMD | SUPPORT IDLER GEAR EMD645 |
| 8358547 | EMD | TURBINE WHEEL, 47 SLOTS |
| 8358548 | EMD | BLADE FOR TURBINE WHEEL 8358547, 5 SERRATION |
| 8358549 | EMD | DISC ROTOR CLASS |
| 8358561 | EMD | IMPELLER COVER |
| 8358562 | EMD | SEAL IMPELLER MODEL 645 |
| 8358564 | EMD | LAB SEAL COMPRESSOR BEARING |
| 8358565 | EMD | GASKET |
| 8358566 | EMD | BOLT |
| 8358571 | EMD | SPACER |
| 8358574 | EMD | PLATE...RETAINER |
| 8358575 | EMD | 645 GEAR, CARRIER DRIVE (30 TOOTH) |
| 8358576 | EMD | RETAINER |
| 8358578 | EMD | GEAR IDLER 18:1 68 TOOTH |
| 8358582 | EMD | SPACER |
| 8359370 | EMD | TABLOCK 25 DEG 645 |
| 8361565 | EMD | BEARING INSERT (INCLINE GROOVE) |
| 8363016 | EMD | RETAINER |
| 8363019 | EMD | NOZZLE RING 29.4 INCHES |
| 8363538 | EMD | SCROLL TURBINE INLET 645 |
| 8363847 | EMD | COVER PLATE,IDLER GEAR SUPPORT. |
| 8366272 | EMD | CLUTCH ROLLER 645 |
| 8366274 | EMD | SUPPORT CLUTCH STD, REPLACED BY 9585247 |
| 8366277 | EMD | RETAINER OVER CLUTCH STD 645/567 |
| 8366280 | EMD | PIN CLUTCH |
| 8366281 | EMD | CLUTCH BEARING SUPPORT 645 |
| 8366705 | EMD | CLUTCH DOWEL ASSY ROLLER STD. |
| 8367033 | EMD | PIN DRIVE CLUTCH |
| 8367100 | EMD | WASHER THRUST |
| 8380046 | EMD | IMPELLER RETAINER |
| 8391676 | EMD | BLADE, 5 SERRATIONS, TIP SHAKE DIM-.021 TO .040 |
| 8391677 | EMD | BLADE, 5 SERRATIONS, TIP SHAKE DIM-.005 TO .020 |
| 8391681 | EMD | CLUTCH ASSEMBLY, STD |
| 8405517 | EMD | NOZZLE RING 645 30.23 SQ IN |
| 8407914 | EMD | IMPELLER COVER |
| 8410283 | EMD | TURBOCHARGER |

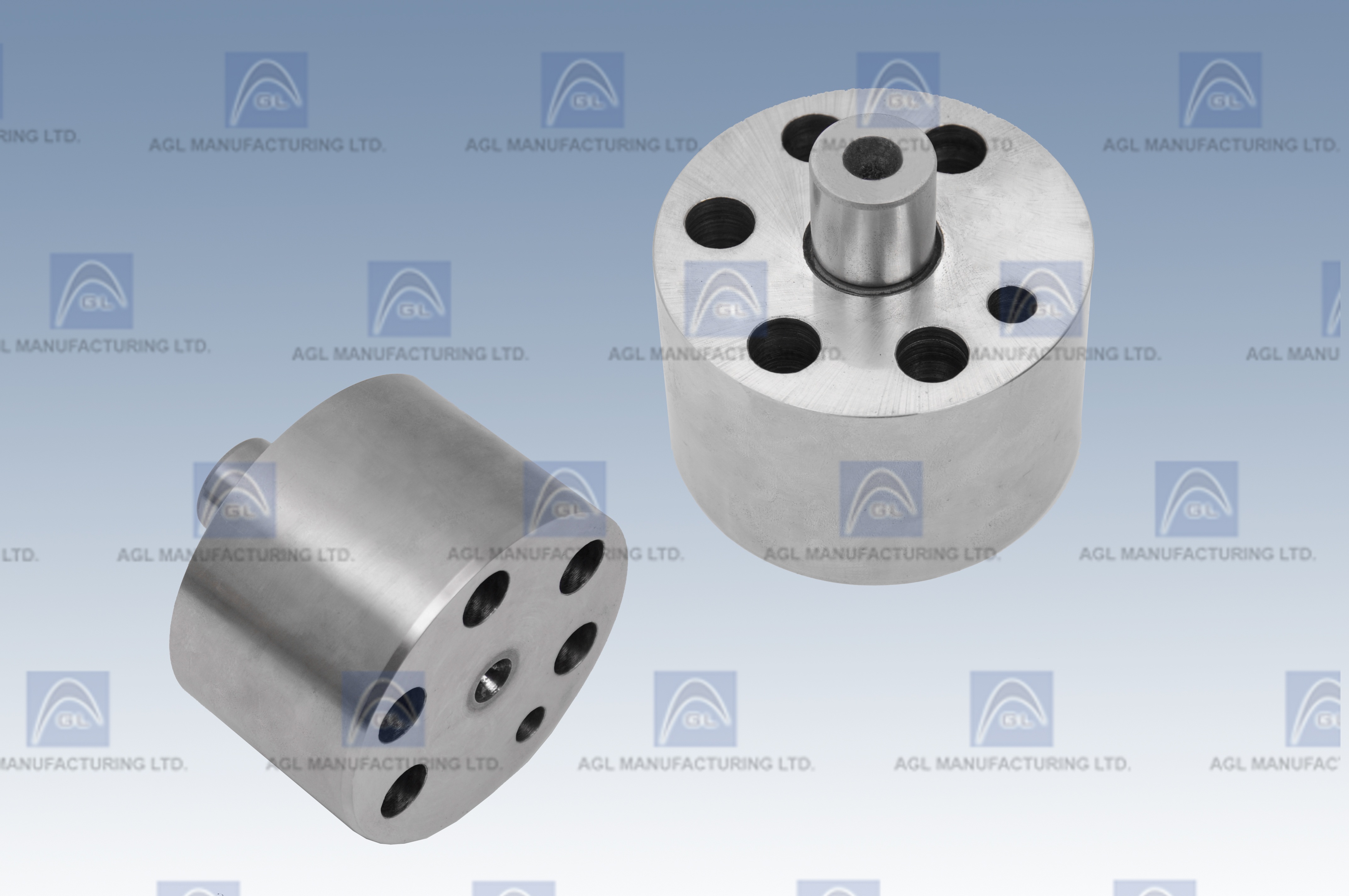

| 8411281 | EMD | IDLER SHAFT 645 |
| 8416706 | EMD | SHROUD RING |
| 8416930 | EMD | GEAR RING |
| 8418959 | EMD | GASKET #7500 1/32"" ALTERNATOR |
| 8421758 | EMD | BEARING TE |
| 8427111 | EMD | GASKET KIT CYL HEAD |
| 8432575 | EMD | CAM PLATE 645 |
| 8433272 | EMD | O-RING, WATER MANIFOLD ASSEMBLY REPLACEMENT, OEM GRADE (ALSO: 8347415) |
| 8442226 | EMD | BEARING INSERT (CROSS GROOVE) |
| 8448549 | EMD | SHROUD RING |
| 8448776 | EMD | DISC ROTOR CLASS |
| 8460205 | EMD | METAL GASKET TURBOCHARGER |
| 8460229 | EMD | BOLT MAIN HOUSING |
| 8474956 | EMD | EXHAUST DIFFUSER 645 |
| 8482491 | EMD | WASHER |
| 8483643 | EMD | COVER ASSEMBLY |
| 8491705 | EMD | SHAFT CARRIER HI-CAP |
| 8491706 | EMD | BEARING PLANETARY |
| 8491707 | EMD | RING GEAR HC |
| 8491710 | EMD | GEAR SHAFT |
| 8491712 | EMD | CLUTCH DOWELING ASSEMBLY HC |

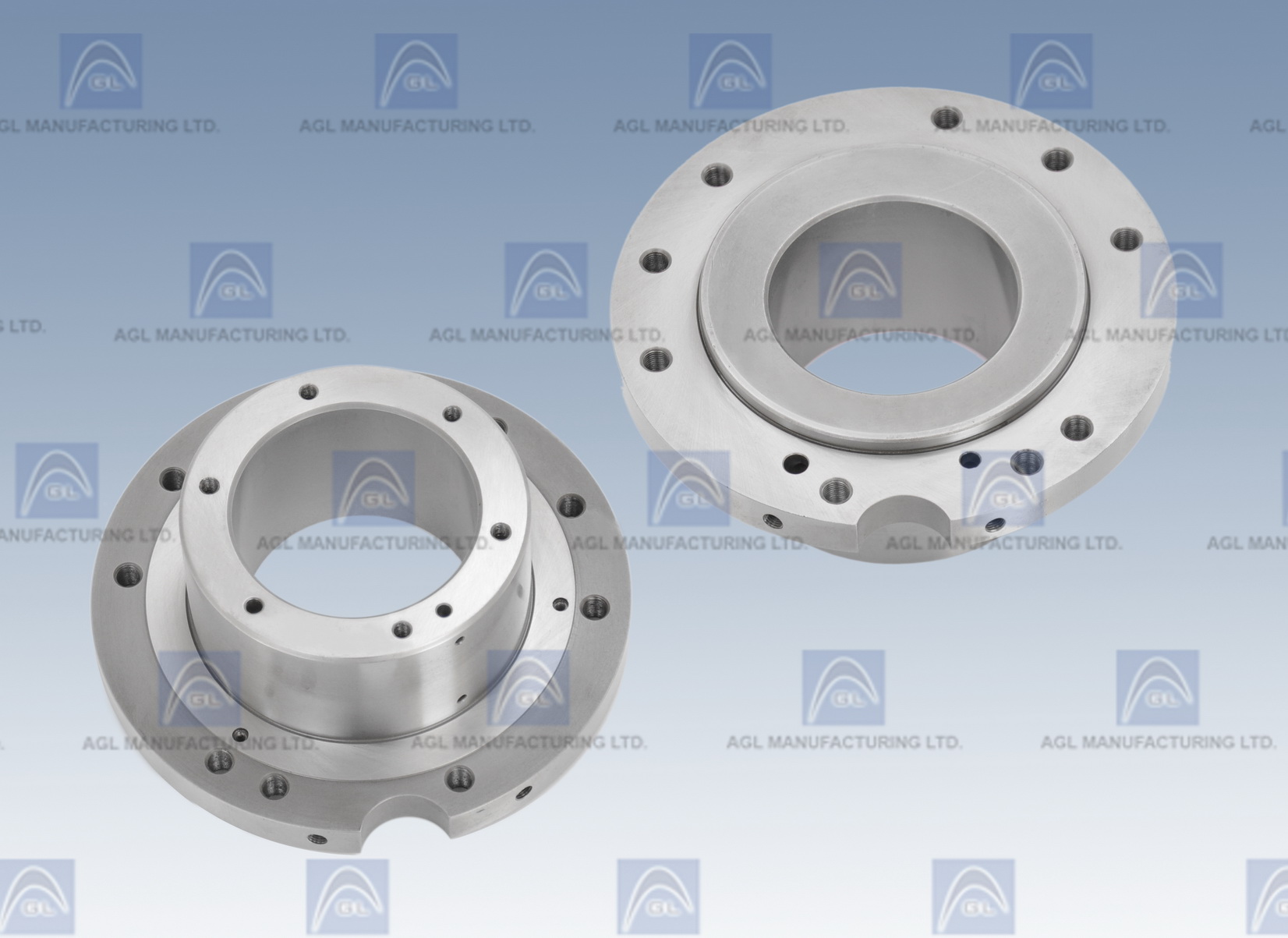

| 8491716 | EMD | CLUTCH SUPPORT HC |
| 8491718 | EMD | THRUST WASHER RETAINER |
| 8491721 | EMD | INSERT |
| 8491722 | EMD | SUPPORT TURBINE INLET |
| 9087620 | EMD | IMPELLER COVER |
| 9088031 | EMD | SHROUD RING |
| 9095686 | EMD | O-RING, OVERSPEED TRIP HOUSING REPLACEMENT, OEM GRADE |
| 9097557 | EMD | CLUTCH ASSEMBLY, HC, WITH RING GEAR 8491707 |
| 9314918 | EMD | GASKET #7500 1/16"" LUBE OIL STRAINER |
| 9315446 | EMD | O-RING, LUBE OIL STRAINER REPLACEMENT, OEM GRADE |
| 9319935 | EMD | SEAL RING CARRIER 645 STD |

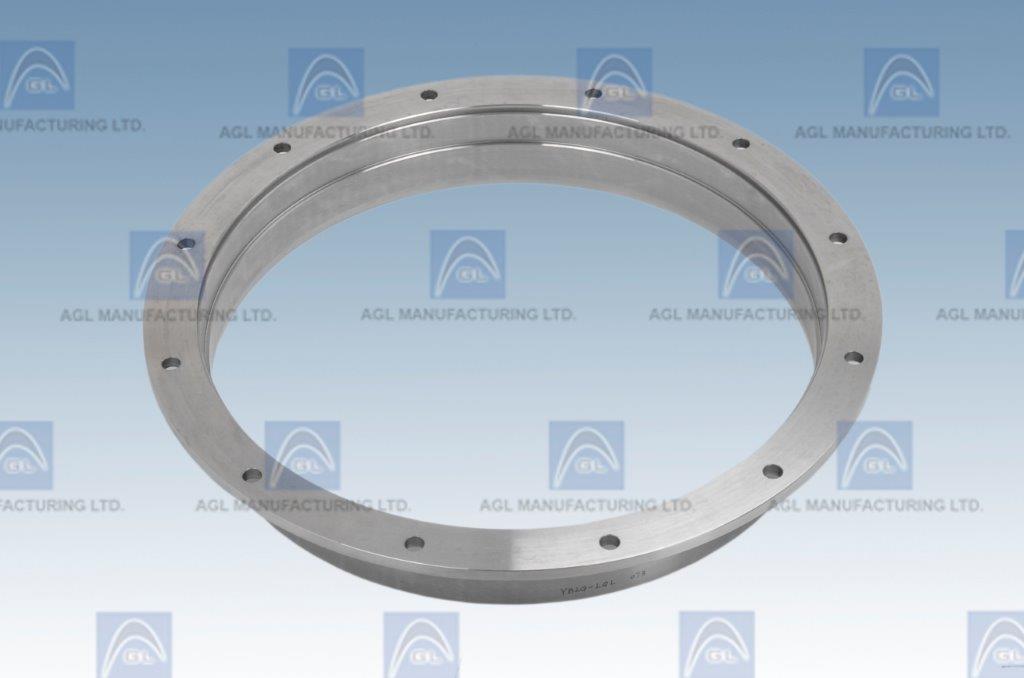

| 9319937 | EMD | SHROUD RING |
| 9319941 | EMD | SHAFT IDLER GEAR |
| 9320844 | EMD | GASKET KIT, CYLINDER LINER INSTALLATION (567) |
| 9330367 | EMD | DUCT ASSEMBLY EXHAUST |

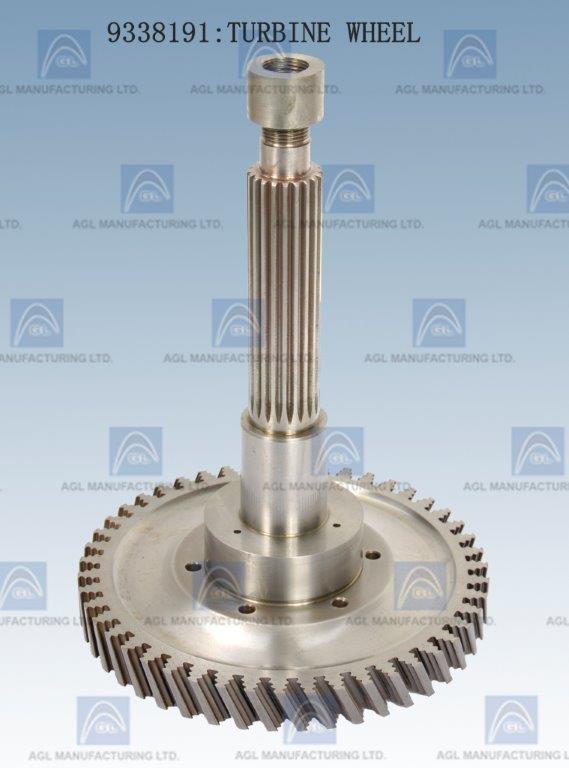

| 9338191 | EMD | TURBINE WHEEL |
| 9338192 | EMD | 645 TURBINE WHEEL |
| 9338194 | EMD | TURBOCHARGER |
| 9414864 | EMD | RING RETAINING |
| 9416636 | EMD | ROLLER BRG CARRIER GEAR SUPPORT |
| 9433120 | EMD | BEARING BALL-IDLER GEAR |
| 9502409 | EMD | TUBE EDUCTOR INNER |
| 9502412 | EMD | TUBE EDUCTOR OUTER |
| 9503272 | EMD | WASHER THRUST HEAT DAM |

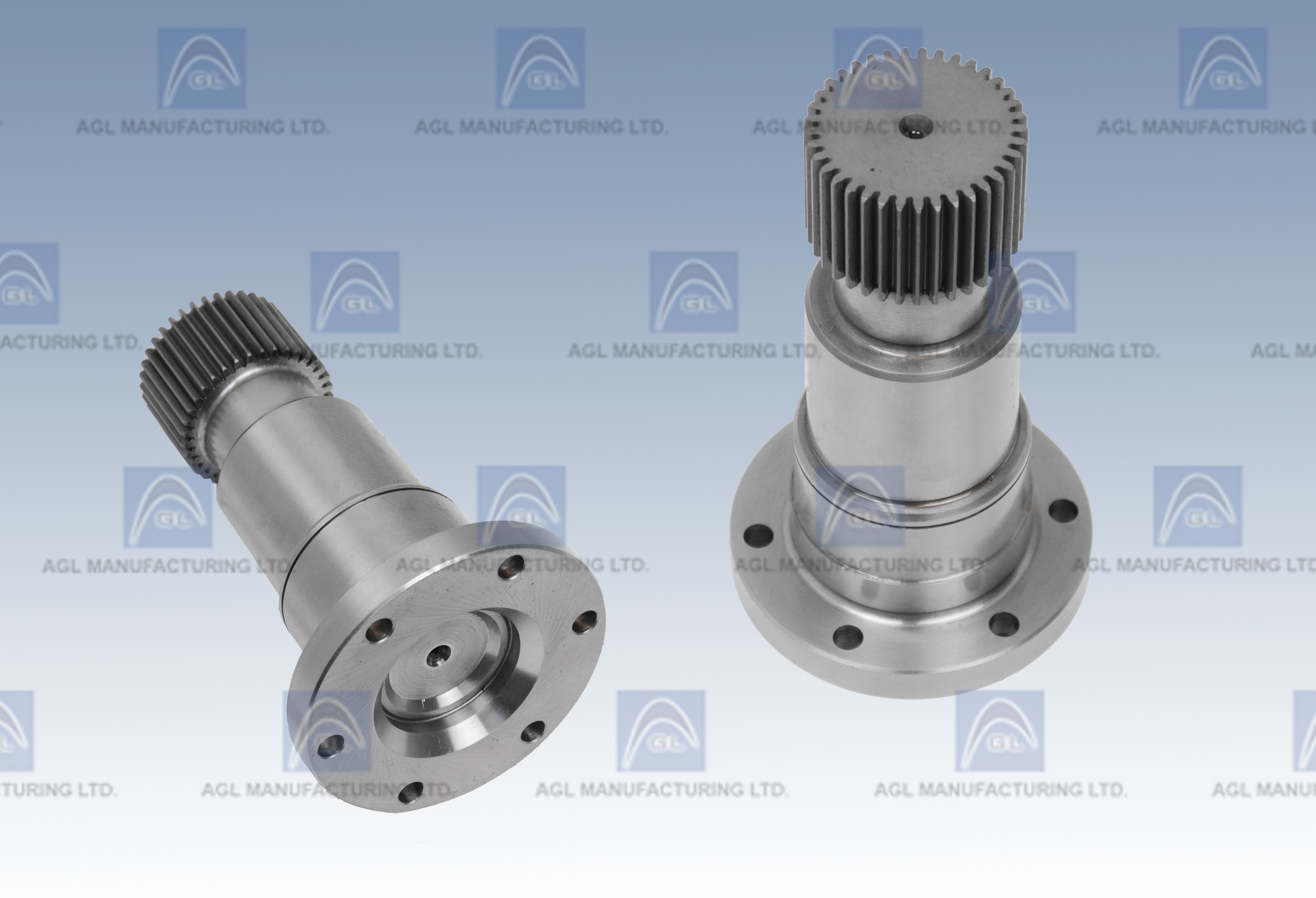

| 9503273 | EMD | SHAFT SUN GEAR HC-SMALL FLG, EMD645 |
| 9503274 | EMD | COMPRESSOR BEARING LABYRINTH S |
| 9503854 | EMD | BEARING COMPRESSOR, JOURNAL SP THRUST |
| 9505486 | EMD | SHAFT ASSEMBLY CARRIER |
| 9507213 | EMD | BLADE, 5 SERRATION |
| 9507684 | EMD | SEAL PARKER |
| 9518645 | EMD | BLADE..TURBINE, TIP SHAKE DIM,-.010 TO.030,25 DEG |
| 9518646 | EMD | BLADES 645 E |
| 9518647 | EMD | BLADE |
| 9518760 | EMD | DIFFUSER 18.5 SQ IN 645 |
| 9526418 | EMD | TURBINE WHEEL 710 16 CYL |
| 9526453 | EMD | SHAFT-SUN GEAR |
| 9526887 | EMD | WASHER HEAT DAM 710 |
| 9526933 | EMD | SPACER THRUST COLLAR |
| 9527502 | EMD | HOUSING TURBO MAIN (MACHINED) |
| 9527758 | EMD | COMPRESSOR LABYRINTH SEAL 710 |
| 9527841 | EMD | CARRIER SEAL RING 710 |
| 9527883 | EMD | RETAINER, SPLIT RING |
| 9528216 | EMD | IMPELLER SEAL |
| 9528217 | EMD | SPACER IMPELLER |
| 9528223 | EMD | TURBOCHARGER, EMD 645 E3C, F3B |
| 9528224 | EMD | BALANCING ASSEMBLY (EMD645 E3C ROTOR) |
| 9528366 | EMD | OIL SEAL |
| 9528521 | EMD | TURBO BRG SUPPORT-MACHINED |
| 9528553 | EMD | STUB SHAFT IDLER GEAR 710 |

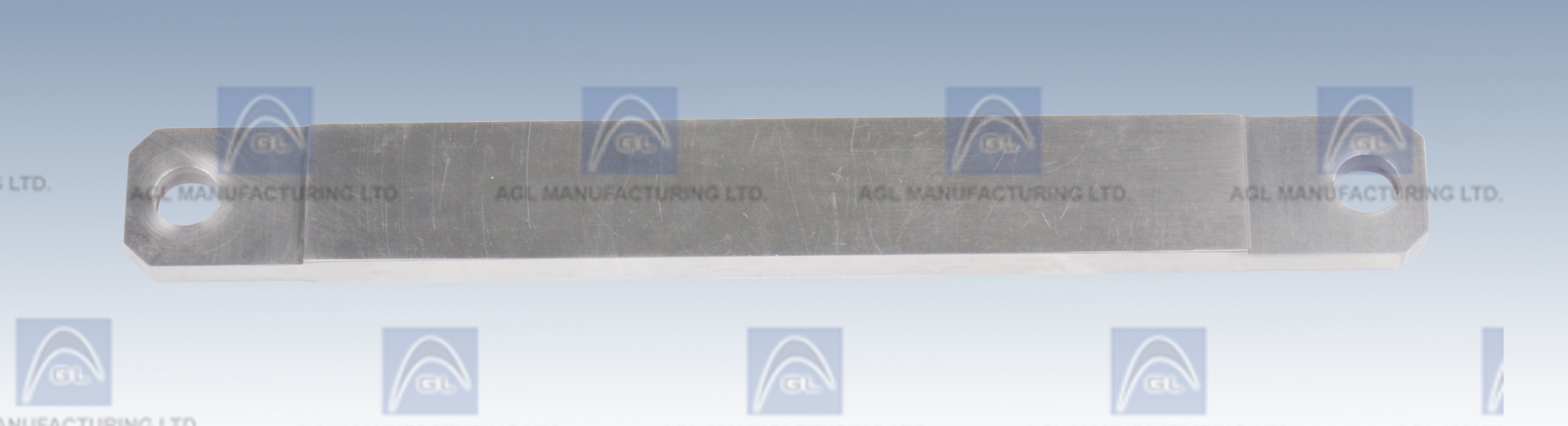

| 9528663 | EMD | LINK, UPPER AND LOWER |
| 9528664 | EMD | CLEVIS, COMP. BRG. SUPPORT |
| 9528713 | EMD | RETAINER PLATE ASSY |
| 9528876 | EMD | GEAR TURBO IDLER |
| 9528974 | EMD | SUPPORT IDLER GEAR |
| 9529830 | EMD | EXHAUST DUCT, MACHINED |
| 9531360 | EMD | SUPPORT ASSY INLET SCROLL (WITH KEY) |
| 9531945 | EMD | RETAINING RING |
| 9531951 | EMD | EMD 710 TURBO BEARINGS. SLEEVE,THRUST |
| 9534179 | EMD | OIL DEFLECTOR |
| 9534379 | EMD | STUBSHAFT |
| 9534594 | EMD | RING GEAR PLANETARY |
| 9534827 | EMD | RETAINER, CAMPLATE |

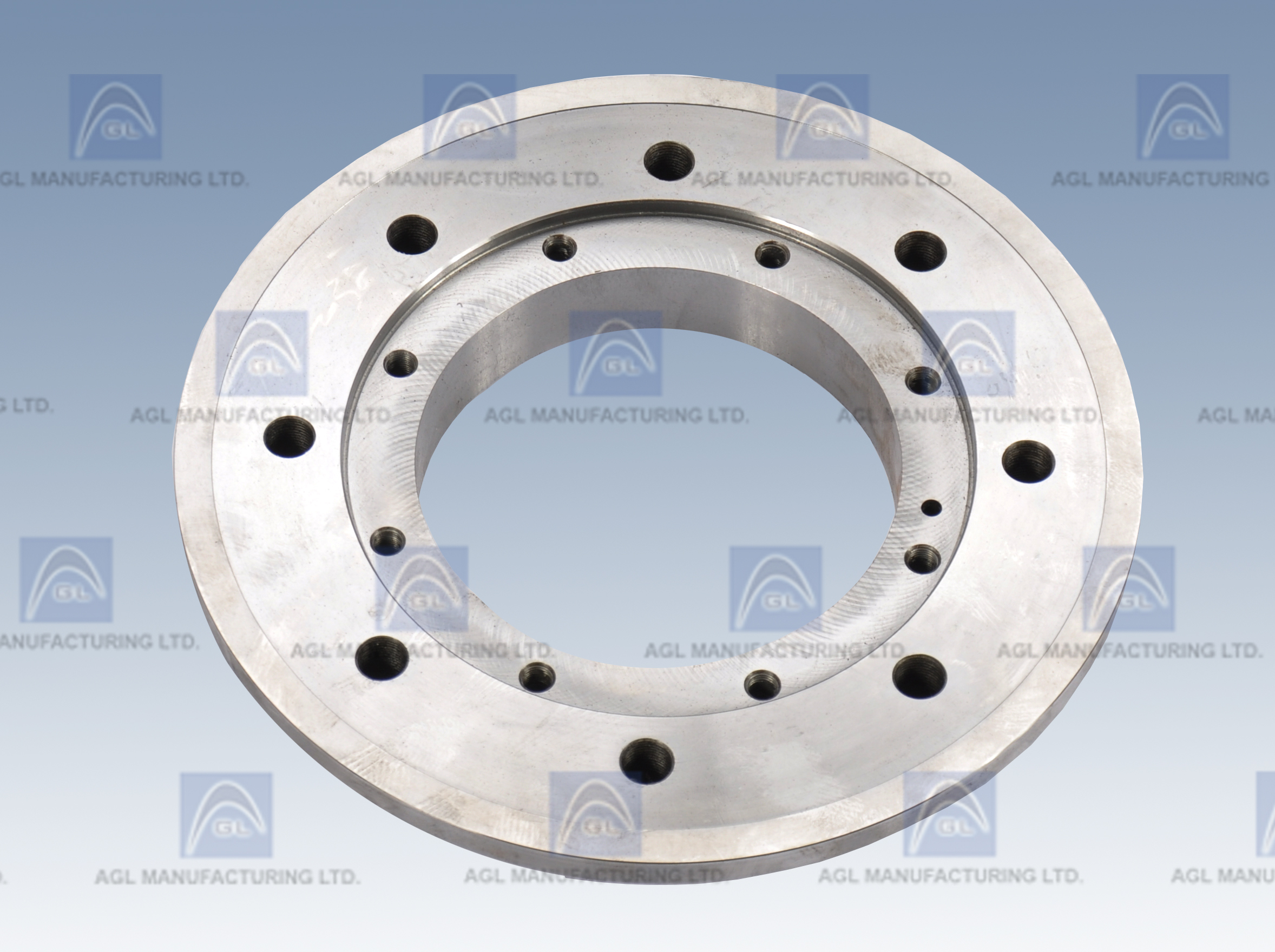

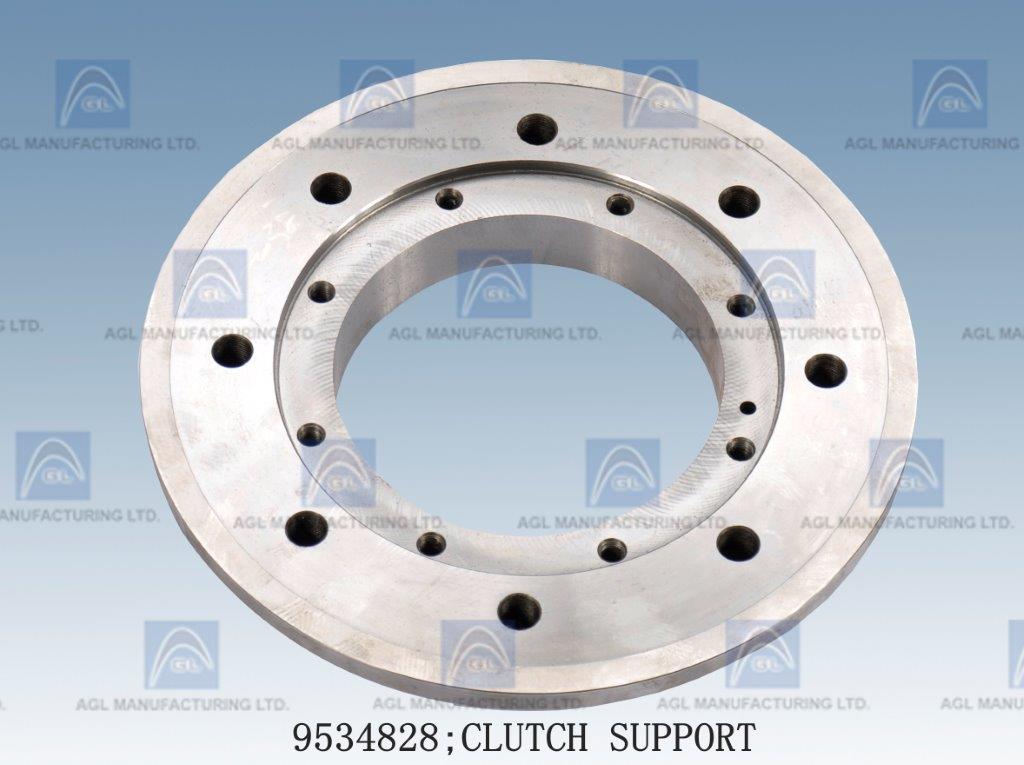

| 9534828 | EMD | CLUTCH SUPPORT 710 |
| 9534855 | EMD | RING RETAINING |
| 9534857 | EMD | CAMPLATE, MODEL 710 |
| 9538549 | EMD | TURBINE WHEEL ASSEMBLY |
| 9538682 | EMD | RETAINER PLATE |
| 9540690 | EMD | COMPR BEARING SUPPORT |
| 9540816 | EMD | SLEEVE, THRUST |
| 9544046 | EMD | THRUST COLLAR |
| 9544888 | EMD | CLUTCH ROLLER WITHOUT RING GEAR |

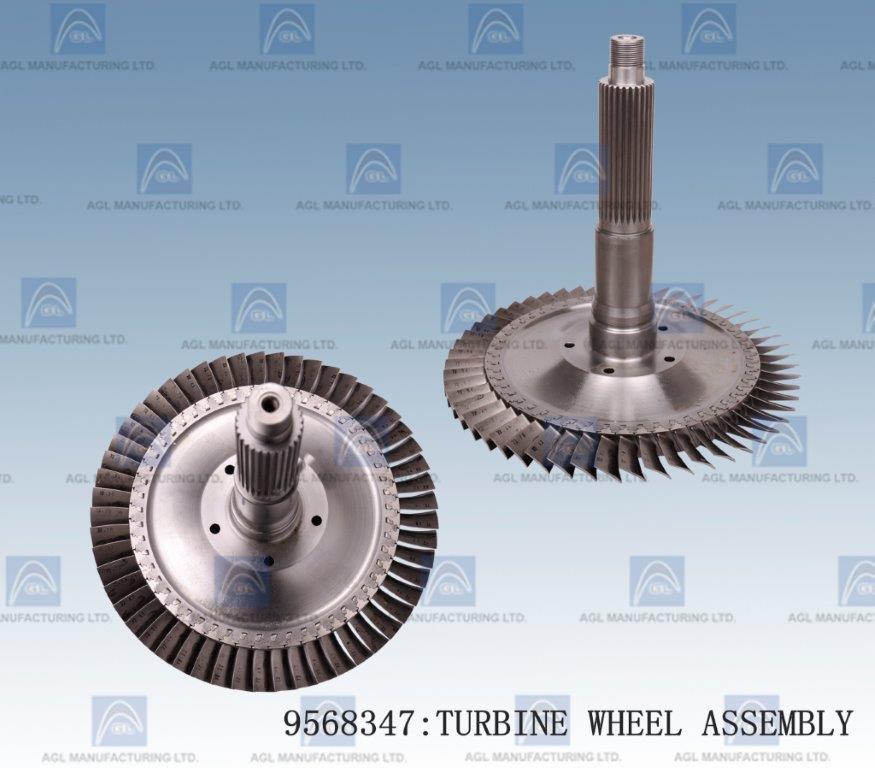

| 9568347 | EMD | TURBINE WHEEL ASSY 710 |
| 9570592 | EMD | GASKET CLUTCH TO BEARING SUPPORT |
| 9570608 | EMD | GASKET 3/64"" HEAD FRAME (OUTER, 12 CYLINDER) |
| 9570629 | EMD | GASKET 1/32"" AUX. GEN. DRIVE |
| 9570679 | EMD | GASKET 1/16"" PIPING REPLACES 8366787 |
| 9570688 | EMD | GASKET, #7500 1/32"" CAMSHAFT DRIVE HSG. |
| 9570765 | EMD | GASKET, #8310 1/8"" LUBE OIL SYSTEM REPLACEMENT, OPTIMIZED |
| 9570778 | EMD | 9570778 GASKET, #7500 1/32"" LUBE OIL SYSTEM |
| 9570843 | EMD | GASKET 3/64"" HEAD FRAM (INNER, 12 CYLINDER) |
| 9571073 | EMD | GASKET #7500 1/16"" LUB. WICK ASSEMBLY |
| 9571079 | EMD | GASKET #N8090 1/32"" TRACTION MOTOR |
| 9571082 | EMD | GASKET N8090 1/32"" TRACTION MOTOR |
| 9571085 | EMD | GASKET #N8090 1/32"" TRACTION MOTOR |
| 9571650 | EMD | GASKET 1/32"" LUBE OIL PIPING |
| 9572073 | EMD | GASKET #7500 1/64""AIR COMPRESSOR REPLACEMENT |
| 9572091 | EMD | GASKET #7500 1/32""AIR COMPRESSOR |
| 9579526 | EMD | SPIRATUALIC SEAL |
| 9580694 | EMD | GASKET KIT, ENGINE BLOWER 567 |
| 9580717 | EMD | GASKET KIT, LUBE OIL SEPARATOR REPLACEMENT |
| 9580730 | EMD | KIT GASKET TURBO |
| 9580759 | EMD | OVERHAUL GASKET |
| 9580777 | EMD | GASKET KIT |
| 9581769 | EMD | SEAL |
| 9582482 | EMD | GASKET KIT POWER ASSEMBLY INSTALLATION |
| 40000027 | EMD | 710 IMPELLER 16 CYL |
| 40001038 | EMD | UPPER IDLER GEAR ASSEMBLY |
| 40008124 | EMD | COVER PLATE, IDLER GEAR SUPPORT |
| 40010542 | EMD | GASKET 1/16"" COOLING SYSTEM |
| 40010838 | EMD | GASKET 1/16"" COOLING SYSTEM |
| 40015822 | EMD | BEARING |
| 40021527 | EMD | COMPRESSOR SEAL EMD710 |
| 40022595 | EMD | TURBINE BLADE 710 |
| 40024939 | EMD | GASKET, #7500 1/32"" OIL PAN ASSEMBLY |
| 40024940 | EMD | GASKET #7500 1/16"" LUBE OIL STRAINER |
| 40025360 | EMD | SLEEVE COMPRESSOR RETAINER |
| 40034114 | EMD | TABLCOK EMD710 |
| 40039278 | EMD | GASKET #7500 1/32"" |
| 40039280 | EMD | GASKET #8310 1/8"" INJECTOR CONTROL LINKAGE |
| 40040022 | EMD | GASKET REPLACES 8028239 |
| 40040026 | EMD | GASKET 1/32"" AUX. GEN.DRIVE REPLACES 8081365 |
| 40040029 | EMD | GASKET #7500 1/32"" REPLACES 9529801 |
| 40040951 | EMD | GASKET, #7500 1/16"" LUBE OIL SEPARATOR |
| 40042486 | EMD | INSTALLATION GASKET SET |
| 40045525 | EMD | SEAL RING |
| 40045696 | EMD | CAMPLATE CLUTCH |
| 40048964 | EMD | GASKET, #7500 1/32"" LUBE OIL SYSTEM |
| 40048966 | EMD | GASKET #7500 1/32"" LUBE OIL SYSTEM |
| 40049152 | EMD | SLEEVE THRUST |
| 40049152 | EMD | THRUST BEARING EMD710 |
| 40049311 | EMD | SLEEVE,COMPRESSOR JOURNAL |
| 40050778 | EMD | GASKET #7500 1/32""INTERCOOLER SYSTEM |
| 40051266 | EMD | DIFFUSER EXHAUST |
| 40052311 | EMD | GASKET KIT, TURBOCHARGER CHANGEOUT (710 G3 ENGINE) |
| 40052486 | EMD | GASKET #9960 1/16"" TURBOCHARGER, EXHAUST DUCT RETAINING RING |
| 40053137 | EMD | SLEEVE PLANETARY |
| 40053528 | EMD | COVER IMPELLER |
| 40055466 | EMD | GASKET |
| 40059346 | EMD | GASKET KIT, LUBE OIL SCAVENGING PUMP (567) |
| 40061562 | EMD | BEARING |
| 40061567 | EMD | SLEEVE, COMPRESSOR SPHERICAL |
| 40069394 | EMD | GASKET, #7500 1/16" |
| 40110618 | EMD | O-RING VITON |
| 8306950- | EMD | SHAFT...GEAR |
| 8316301RM | EMD | CASTING FOR BLADES |
| 8366274/9585247 | EMD | MACHINE COMPL. SUPP CLUTCH STD |
| 8421487/9540817 | EMD | BEARING PLANETARY |
| 8441777/8291326 | EMD | SEAL RING EXHAUT |
| 8455665/8455844 | EMD | MAIN BEARING OUTER |
| 8455666/8455862 | EMD | MAIN BEARING INTER |
| 8455667/8455850 | EMD | MAIN BEARING CENTRE |
| 8455668/8455856 | EMD | MAIN BEARING INTER NARROW. |
| 8455844/8455665 | EMD | MAIN BEARING OUTER |
| 8455850/8455667 | EMD | MAIN BEARING CENTRE |
| 8455856/8455668 | EMD | MAIN BEARING INTER NARROW |
| 8455862/8455666 | EMD | MAIN BEARING INTER |
| 8460300/8289807 | EMD | CARRIER SEAL RING 645, ALSO 8289807 |
| 9540818/8329451 | EMD | SEAL SPHER THRUST BEARING |
| 9543882/9543944 | EMD | MAIN BEARING INTER |
| 9543889/9543950 | EMD | MAIN BEARING GENERATOR END |
| 9543895/9543956 | EMD | MAIN BEARING CENTRE |
| 9543944/9543882 | EMD | MAIN BEARING INTER |
| 9543950/9543889 | EMD | MAIN BEARING GENERATOR END |
| 9543956/9543895 | EMD | MAIN BEARING CENTRE |
| 9574404/8421758 | EMD | SLEEVE,TURBINE |
