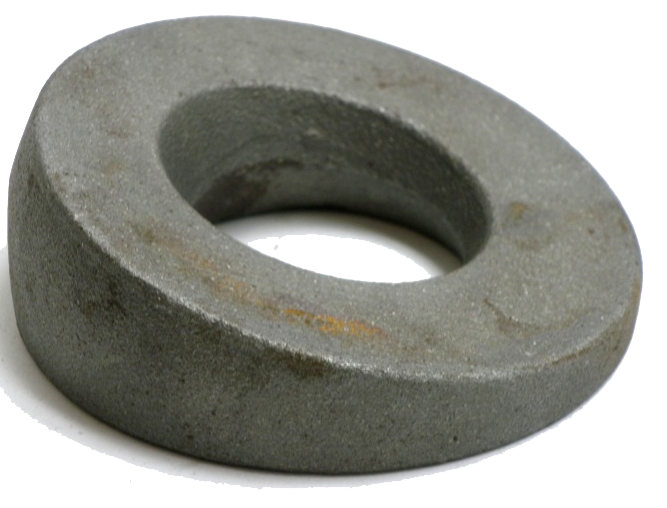

Rod Thread - Beveled Washers

Part Number Anchor Degree of Bevel Outer Diameter (mm) Inside Diameter (mm) Max Thickness (mm)
BW32 R32 15 89 38 31
BW38 R38 15 89 44 32
BW51 R51 10 96 58 30
BW76 T76 10 190 89 59
