Rock Drilling - Threaded Drill Bits

Side holes can be customized.

Part Number Thread Diameter (mm) Tip Size (mm) Gauge Tip Size (mm) Front No of Flushing holes Side No of Flushing holes Front Weight (kg)
BR2541F5N R25/R32 41 5 x 8 2 x 7 1 1 0.54
BR2543F5N R25/R32 43 5 x 8 2 x 7 1 1 0.55
BR2545F5N R25/R32 45 5 x 9 2 x 8 1 1 0.6
BR3241F5N R25/R32 41 5 x 8 2 x 7 1 1 0.5
BR3243F5N R25/R32 43 5 x 8 2 x 7 1 1 0.6
BR3245F5N R25/R32 45 5 x 9 2 x 8 1 2 0.8
BR3248F5N R25/R32 48 5 x 9 2 x 8 1 2 0.9
BR3251F5N R25/R32 51 5 x 10 2 x 10 1 2 1.1
BR3260F6N R25/R32 60 6 x 9 3 x 9 * 3 1.8
BR3264F6N R25/R32 64 6 x 10 4 x 9 * 3 2.0
BR3270F6N R25/R32 70 6 x 12 4 x 10 * 3 2.3
BR3276F6N R25/R32 76 6 x 13 4 x 10 * 3 2.5
BR3289F8N R25/R32 89 8 x 12 5 x 12 2 2 3.0
BR32102F8N R25/R32 102 8 x 13 6 x 12 2 2 4.0
BR32115F8N R25/R32 115 8 x 13 6 x 13 2 2 6.0
BR3260D6R R25/R32 60 6 x 9 4 x 8 * 3 1.7
BR3264D6R R25/R32 64 6 x 9 4 x 9 * 3 1.9
BR3270D6R R25/R32 70 6 x 10 4 x 10 * 3 2.2
BR3276D8R R25/R32 76 8 x 11 6 x 9 * 4 3.1
BR3289D8R R25/R32 89 8 x 12 6 x 11 * 4 5.0

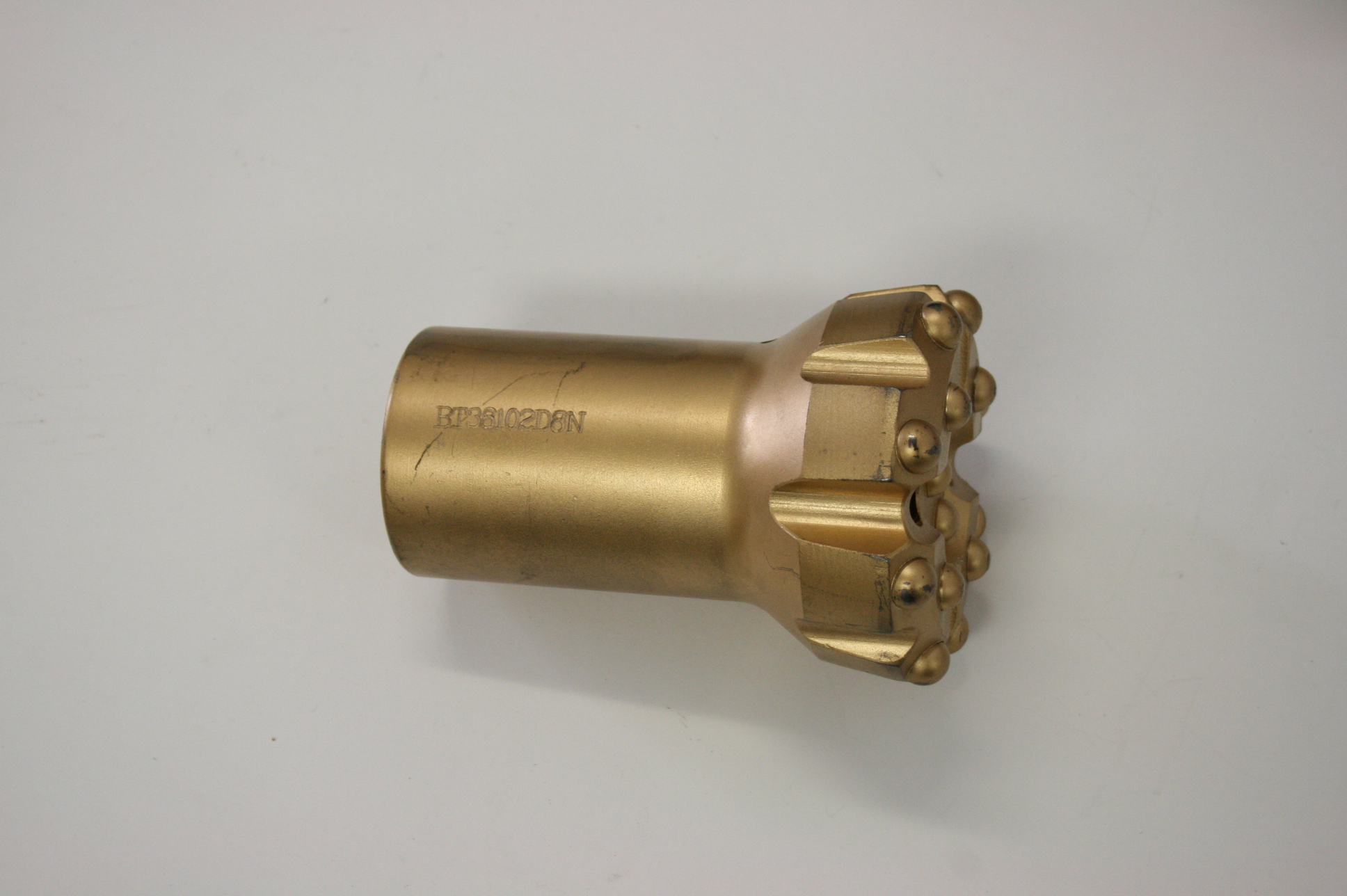

BR32102D8R R25/R32 102 8 x 13 6 x 12 * 4 7.0
BR32115D8R R25/R32 115 8 x 13 6 x 13 * 4 9.6
BR3857F5N R38 57 5 x 11 3 x 10 1 1 1.6
BR3864F5N R38 64 5 x 12 3 x 11 1 1 1.6
BR3876F5N R38 76 5 x 14 3 x 12 1 2 2.4
BR3864F8N R38 64 8 x 9 4 x 9 2 2 1.8
BR3876F8N R38 76 8 x 11 4 x 10 2 2 2.6
BR3889F8N R38 89 8 x 12 6 x 11 2 2 3.3
BR38102F8N R38 102 8 x 13 6 x 12 2 2 4.7
BR3860F8R R38 60 8 x 9 3 x 9 2 2 1.7
BR3864F8R R38 64 8 x 9 4 x 9 2 2 2
BR3870F8R R38 70 8 x 10 4 x 10 2 2 2.4
BR3876F8R R38 76 8 x 11 4 x 10 2 2 3.2
BR3889F8R R38 89 8 x 12 5 x 12 2 2 5.8
BR3864D6N R38 64 6 x 10 4 x 9 * 3 1.7
BR3870D6N R38 70 6 x 11 4 x 10 * 3 2.2
BR3889D6N R38 89 6 x 14 4 x 12 * 3 4.3
BR3864D8N R38 64 8 x 9 5 x 8 * 4 1.7
BR3870D8N R38 70 8 x 10 5 x9 * 4 2.2
BR3876D8N R38 76 8 x 11 5 x 10 * 4 2.7

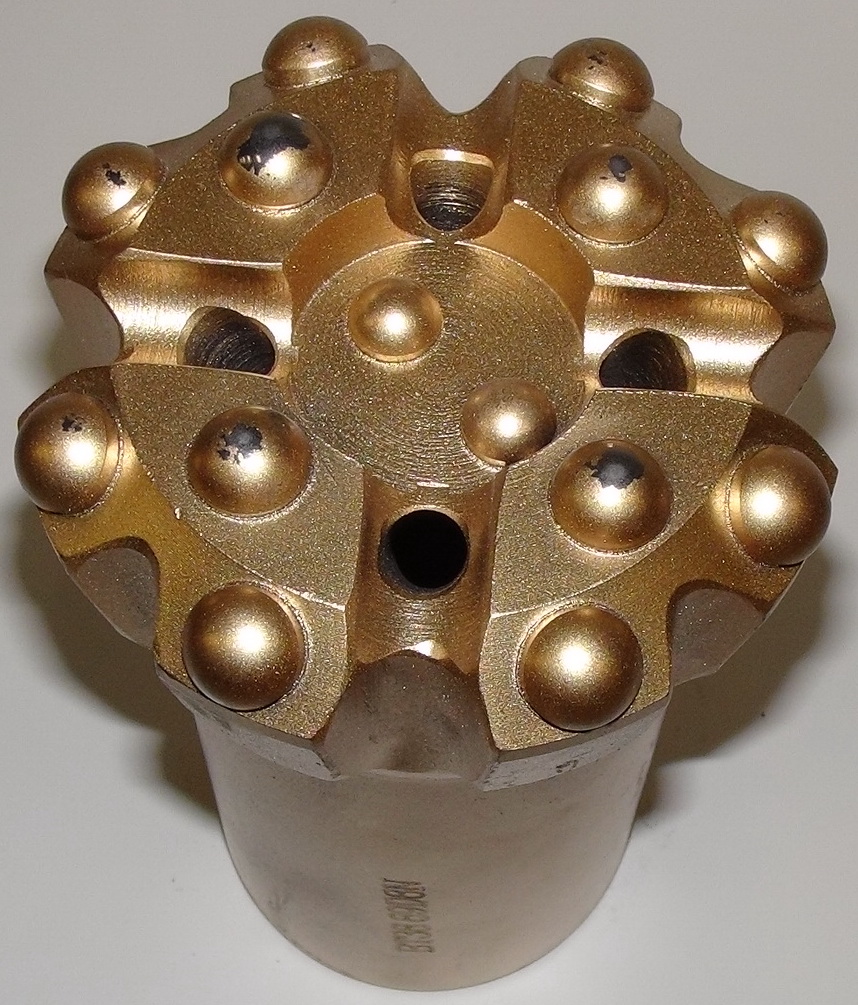

BR3889D8N R38 89 8 x 12 6 x 11 * 4 3.3
BR38102D8N R38 102 8 x 13 6 x 12 * 4 4.7
BR3864D8R R38 64 8 x 9 5 x 9 * 4 1.9
BR3870D8R R38 70 8 x 10 5 x 10 * 4 2.4
BR3876D8R R38 76 8 x 11 5 x 10 * 4 3.3
BR3889D8R R38 89 8 x 12 6 x 11 * 4 5.3
BR3876X4N R38 76 25(H)X13(W) * 5 2.4
BR3889X4N R38 89 25(H)X13(W) * 5 3
BR3876X4R R38 76 25(H)X13(W) * 5 3.9
BR3889X4R R38 89 25(H)X13(W) * 5 4.5
BT3857F5N T38 57 5 x 11 3x 10 1 1 1.6
BT3864F5N T38 64 5 x 12 3 x 11 1 1 1.6
BT3876F5N T38 76 5 x 14 3 x 12 1 2 2.4
BT3864F8N T38 64 8 x 9 4 x 9 2 2 1.8
BT3876F8N T38 76 8 x 11 4 x 10 2 2 2.6
BT3889F8N T38 89 8 x 12 6 x 11 2 2 3.3
BT38102F8N T38 102 8 x 13 6 x 12 2 2 4.7
BT3860F8R T38 60 8 x 9 3 x 9 2 2 1.7
BT3864F8R T38 64 8 x 9 4 x 9 2 2 2
BT3870F8R T38 70 8 x 10 4 x 10 2 2 3.2
BT3876F8R T38 76 8 x 11 4 x 10 2 2 3.8
BT3889F8R T38 89 8 x 12 5 x 12 2 2 5.8
BT3864D6N T38 64 6 x 10 4 x 9 * 3 1.7
BT3870D6N T38 70 6 x 11 4 x 1 * 3 2.2
BT3889D6N T38 89 6 x 14 4 x 12 * 3 4.3
BT3864D8N T38 64 8 x 9 5 x 8 * 4 1.7
BT3870D8N T38 70 8 x 10 5 x 9 * 4 2.2

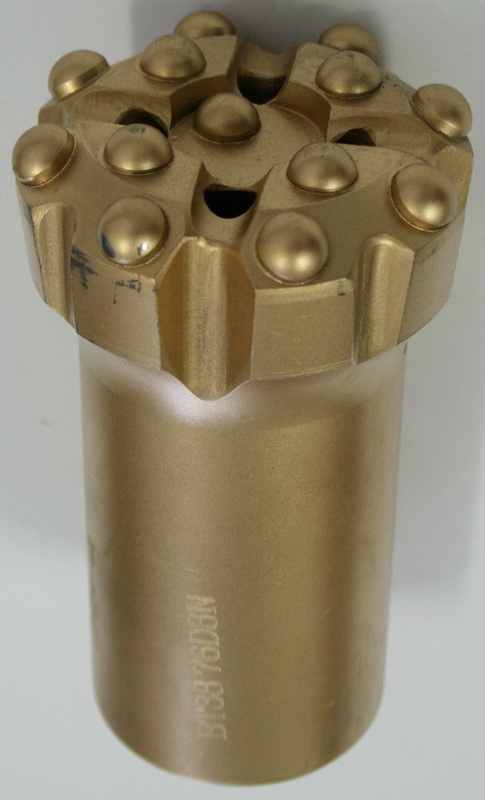

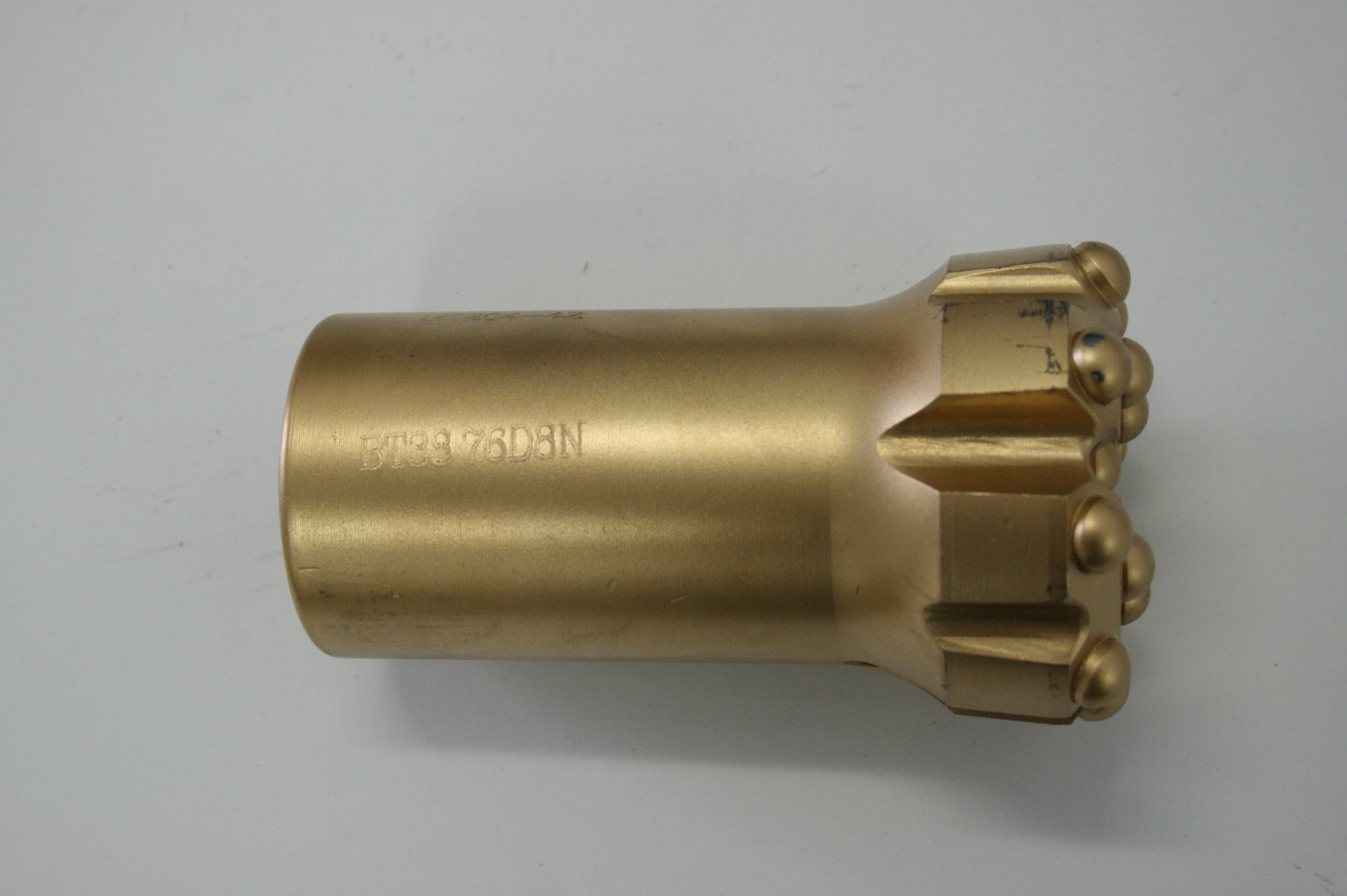

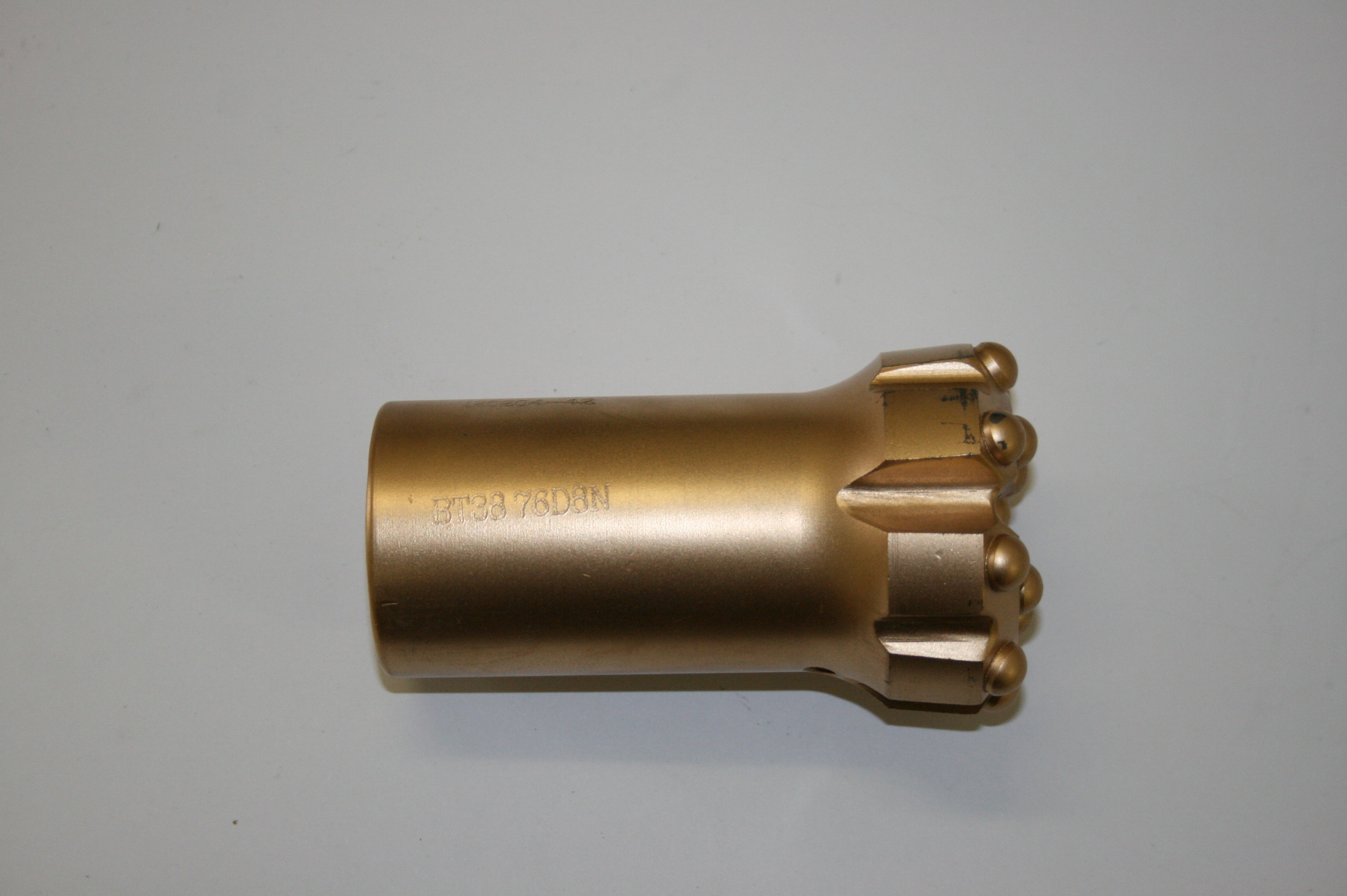

BT3876D8N T38 76 8 x 11 5 x 10 2 4 2.7

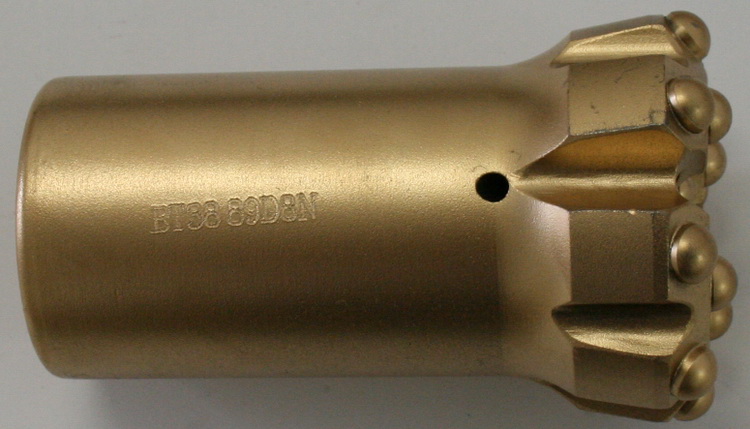

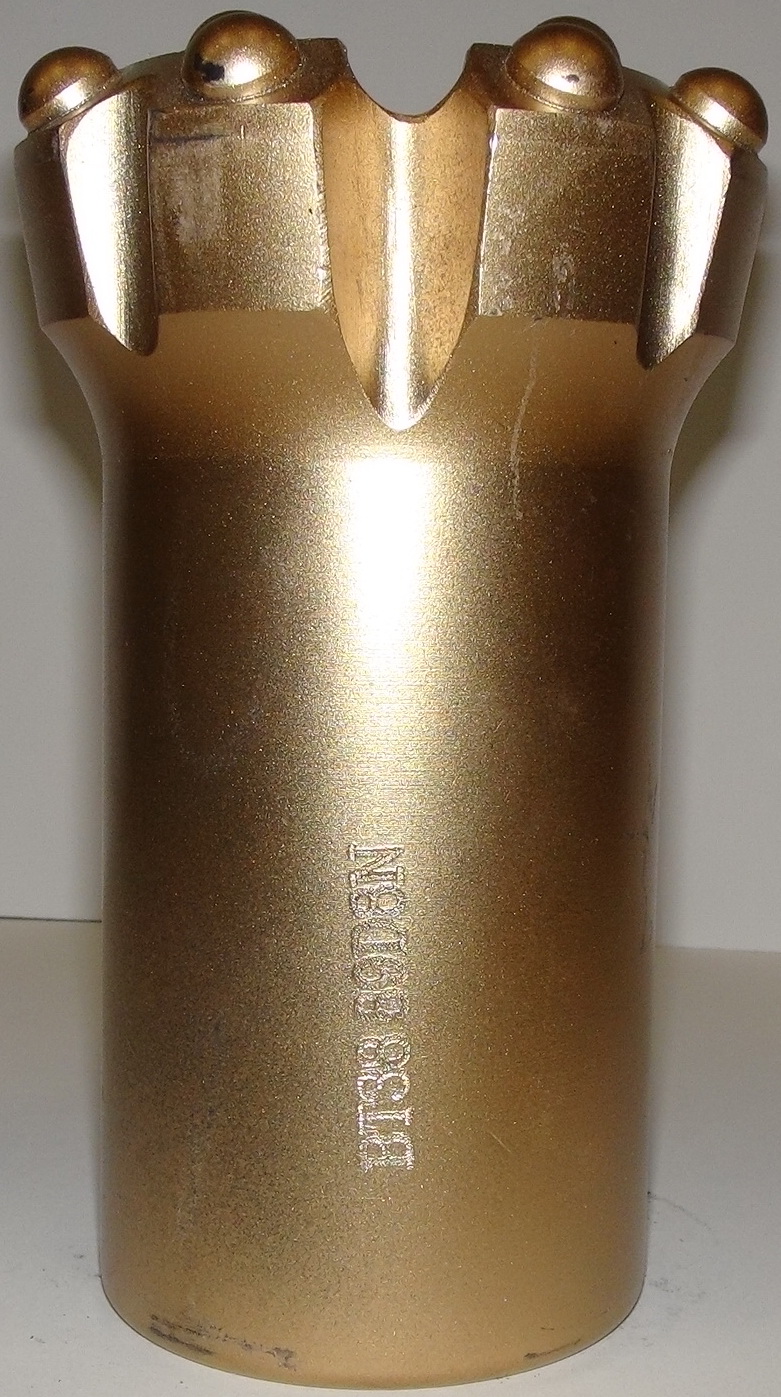

BT3889D8N T38 89 8 x 12 6 x 11 2 4 3.3
BT38102D8N T38 102 8 x 13 6 x 12 2 4 4.7
BT3864D8R T38 64 8 x 9 5 x 9 * 4 1.9
BT3870D8R T38 70 8 x 10 5 x 10 * 4 2.4

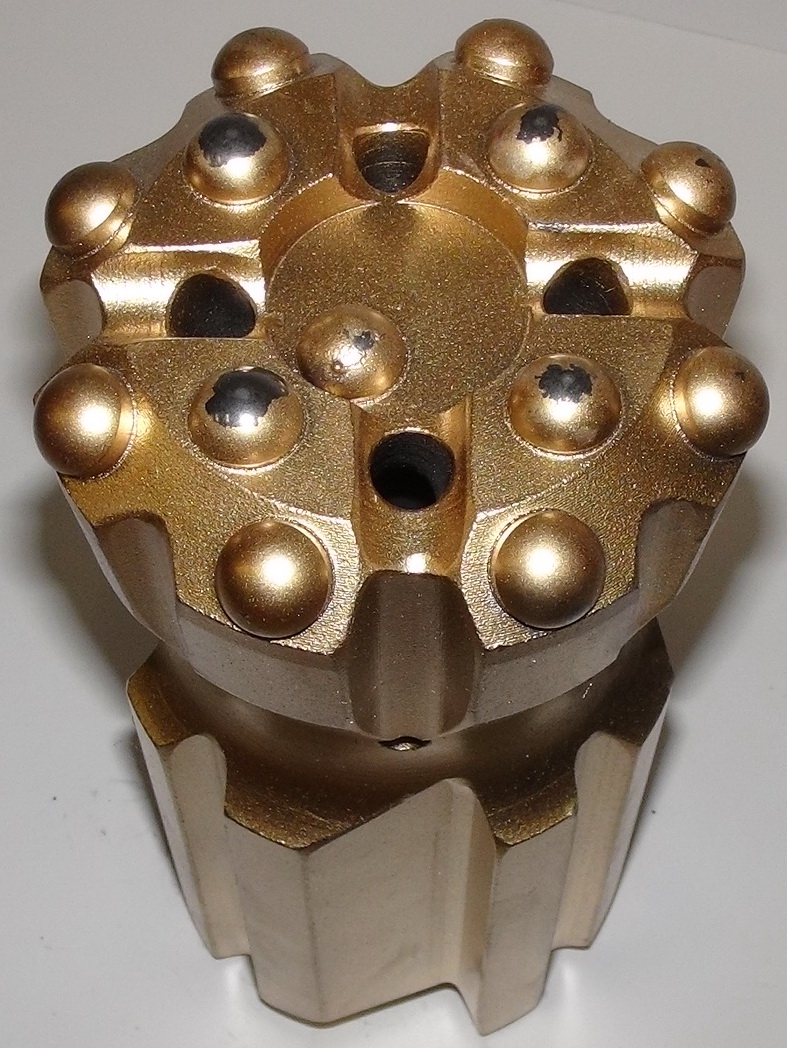

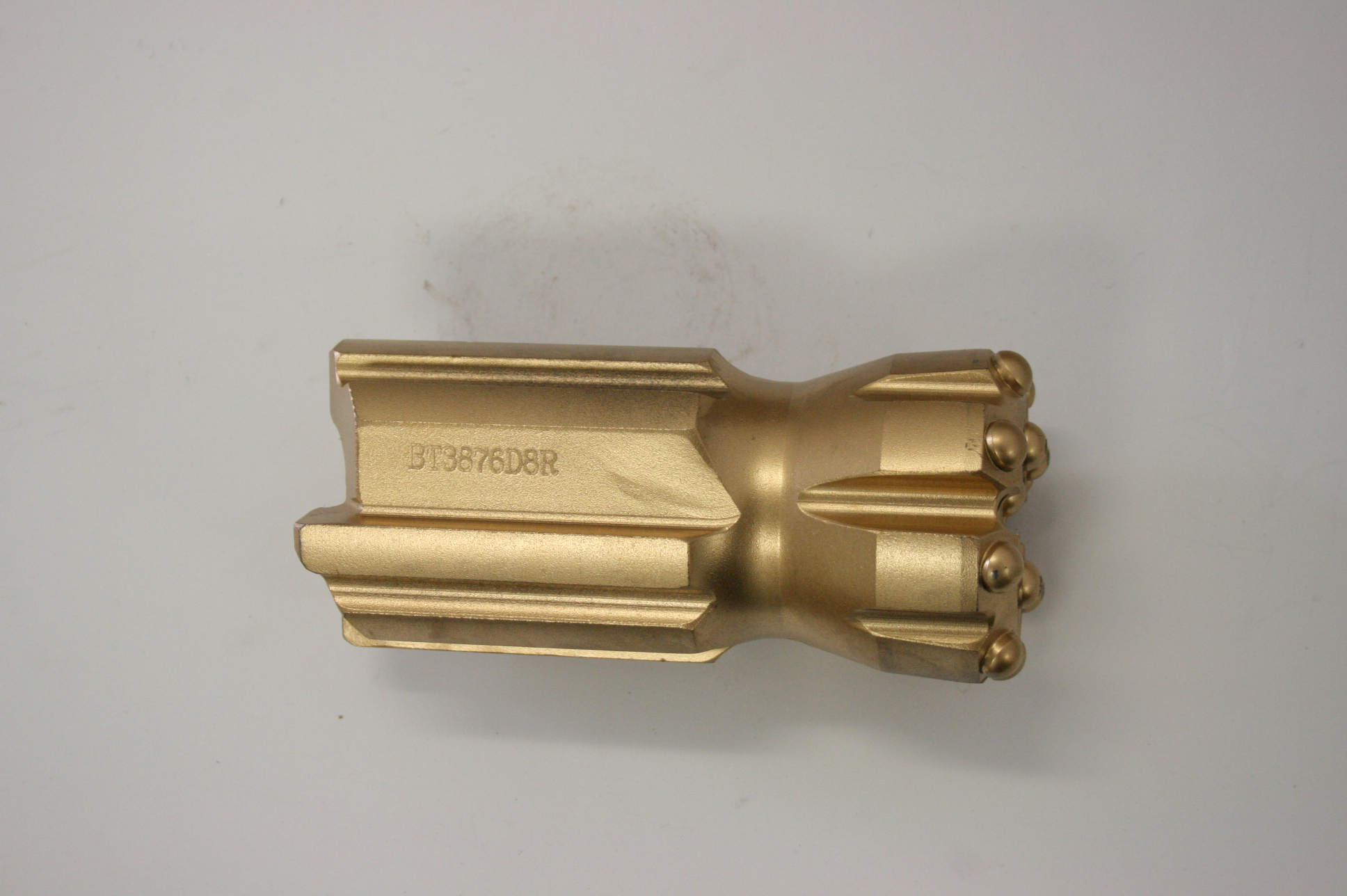

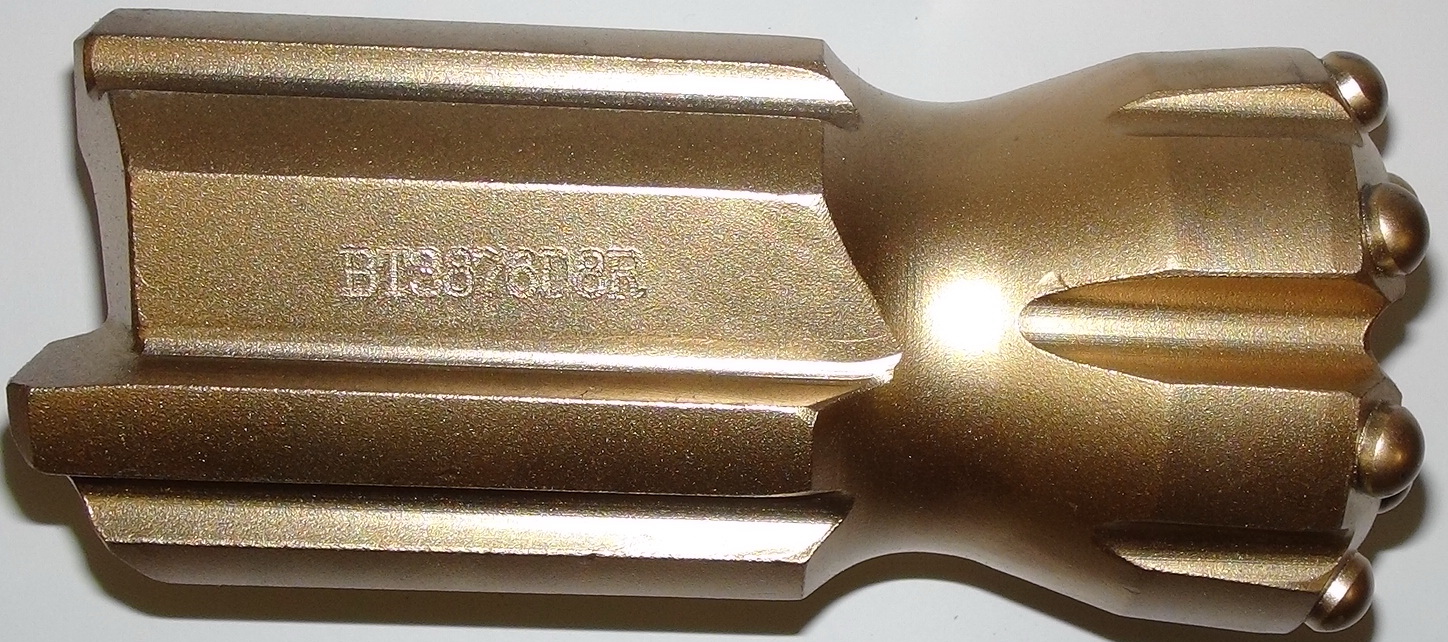

BT3876D8R T38 76 8 x 11 5 x 10 2 4 3.3
BT3889D8R T38 89 8 x 12 6 x 11 2 4 5.3
BT3876X4N T38 76 25(H)X13(W) * 5 2.4
BT3889X4N T38 89 25(H)X13(W) * 5 3.0
BT3876X4R T38 76 25(H)X13(W) * 5 3.9
BT3889X4R T38 89 25(H)X13(W) * 5 4.5
BT4570F6N T45 70 6 x 11 4 x 10 * 2 2.4
BT4576F6N T45 76 6 x 13 4 x 10 * 2 2.6
BT4589F6N T45 89 8 x 12 5 x 12 2 2 4.5
BT45102F6N T45 102 8 x 13 6 x 12 2 2 5.0
BT45115F6N T45 115 8 x 14 6 x 13 2 2 6.8
BT4570F8R T45 70 8 x 11 4 x 10 2 2 2.5
BT4576F8R T45 76 8 x 12 5 x 11 2 2 3.1
BT4580F8R T45 80 8 x 12 5 x 11 2 2 4.0
BT4589F8R T45 89 8 x 12 6 x 11 2 2 5.1
BT45102F8R T45 102 8 x 13 6 x 12 2 2 8.2
BT4564D6N T45 64 6 x 10 4 x 9 * 3 1.6
BT4570D6N T45 70 6 x 12 4 x 10 * 3 2.4
BT4576D8N T45 76 8 x 10 5 x 10 * 4 2.6
BT4589D8N T45 89 8 x 12 6 x 11 * 4 4.6
BT45102D8N T45 102 8 x 13 6 x 12 * 4 4.5
BT4570D8R T45 70 8 x 10 5 x 9 * 4 2.2
BT4576D8R T45 76 8 x 11 6 x 9 * 4 3.1
BT4589D8R T45 89 8 x 12 6 x 11 * 4 5.4
BT45102D8R T45 102 8 x 13 6 x 12 2 4 7.8
BT45115D8R T45 115 8 x 13 6 x 12 2 4 8.3
BT4576X4N T45 76 25(H)X13(W) * 5 2.4
BT4589X4N T45 89 25(H)X13(W) * 5 2.8
BT4576X4R T45 76 25(H)X13(W) * 5 3.9
25(H)X13(W) T45 89 25(H)X13(W) * 5 4.2
BT5189F8N T51 89 8 x 12 5 x 12 2 2 4.9
BT51102F8N T51 102 8 x 13 x 12 2 2 5.8
BT5115F8N T51 115 8 x 14 6 x 13 2 2 6.8
BT5127F8N T51 127 8 x 14 6 x 14 2 2 7.5
BT5189F9N T51 89 9 x 10 6 x 11 * 3 4.6
BT51102F9N T51 102 9 x 12 6 x 12 * 3 5.9
BT5115F9N T51 115 9 x 12 9 x 12 * 3 6.6
BT51127F9N T51 127 9 x 13 9 x 13 * 3 8.4
BT51152F9N T51 152 9 x 14 9 x 14 * 3 11.1
BT5189F8R T51 89 8 x 12 5 x 12 2 2 5.1
BT51102F8R T51 102 8 x 13 6 x 12 2 2 7.1
BT51115F8R T51 115 8 x 14 6 x 13 2 2 10.5
BT51127F8R T51 127 8 x 14 6 x 14 2 2 12.5
BT5189D6N T51 89 6 x 14 4 x 12 * 3 4.5
BT51102D8N T51 102 8 x 13 6 x 12 * 4 5.7
BT51115D8N T51 115 8 x 13 6 x 13 * 4 6.8
BT51127D8N T51 127 8 x 14 7 x 13 * 4 7.5
BT51140D8N T51 140 8 x 16 6 x 16 * 4 14.4
BT51152D8N T51 152 8 x 16 7 x 16 * 4 15.1
BT5189D8R T51 89 8 x 12 6 x 11 * 4 5.3
BT51102D8R T51 102 8 x 13 6 x 12 * 4 7.4
BT51115D8R T51 115 8 x 13 6 x 13 * 4 10.2
BT51127D8R T51 127 8 x 14 7 x 13 * 4 12.0

*—Side holes can be customized.
